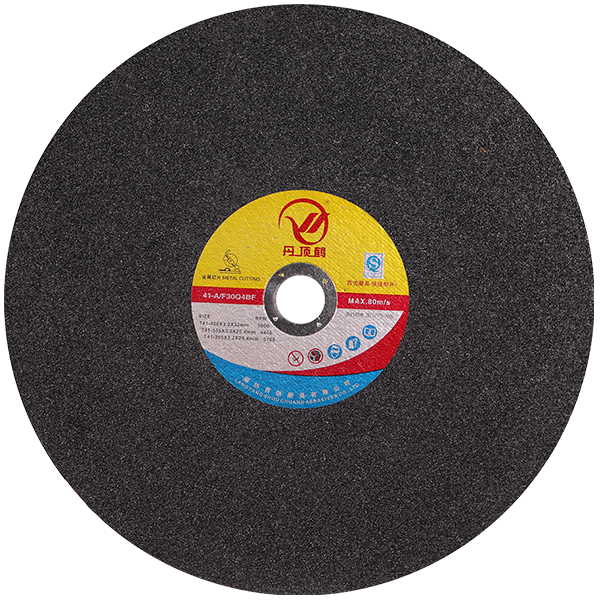

| Cutting Wheels For Metal Durable | |||||||
| 41A（Brown corundum） | |||||||
| Shape |
|
||||||
| Item No. | Specification(mm) | British system | Rotating speed R.P.M | Speed | Film / box (PCS) | Gross weight （kg） | size（cm） |
|---|---|---|---|---|---|---|---|
| DDH-41A1052 | 105×2×16 | 4"×1/12"×5/8" | 15200 | 80M/S | 600 | 25 | 34×26×23 |
| DDH-41A1003 | 100×3×16 | 4"×1/8"×5/8" | 15200 | 80M/S | 400 | 23 | 38×22×22 |
| DDH-41A1252 | 125×2×22 | 5"×1/12"×7/8" | 12200 | 80M/S | 400 | 24 | 28×26×26 |
| DDH-41A1253 | 125×3×22 | 5"×1/8"×7/8" | 12200 | 80M/S | 200 | 18 | 27×19×27 |
| DDH-41A1502 | 150×2×22 | 6"×1/12"×7/8" | 10200 | 80M/S | 280 | 24 | 42×31×16 |
| DDH-41A1503 | 150×3×22 | 6"×1/8"×7/8" | 10200 | 80M/S | 200 | 17 | 32×19×16 |
| DDH-41A1802 | 180×2×22 | 7"×1/12"×7/8" | 8500 | 80M/S | 200 | 24 | 38×27×19 |
| DDH-41A1803 | 180×3×22 | 7"×1/8"×7/8" | 8500 | 80M/S | 100 | 18 | 38×19×19 |
| DDH-41A2303 | 230×3×22 | 9"×1/8"×7/8" | 6600 | 80M/S | 50 | 15 | 24×24×20 |
| DDH-41A2553 | 255×3×25.4 | 10"×1/8"×1" | 6200 | 80M/S | 50 | 19 | 26×26×17 |
| DDH-41A3053 | 305×3×25.4 | 12"×1/8"×1" | 5100 | 80M/S | 25 | 16 | 31×31×9 |
| DDH-41A3553 | 355×3×25.4 | 14"×1/8"×1" | 4400 | 80M/S | 25 | 19 | 36×36×9 |
| DDH-41A4003 | 400×3×25.4/32 | 16"×1/8"×1" | 3800 | 80M/S | 25 | 22 | 41×41×9 |

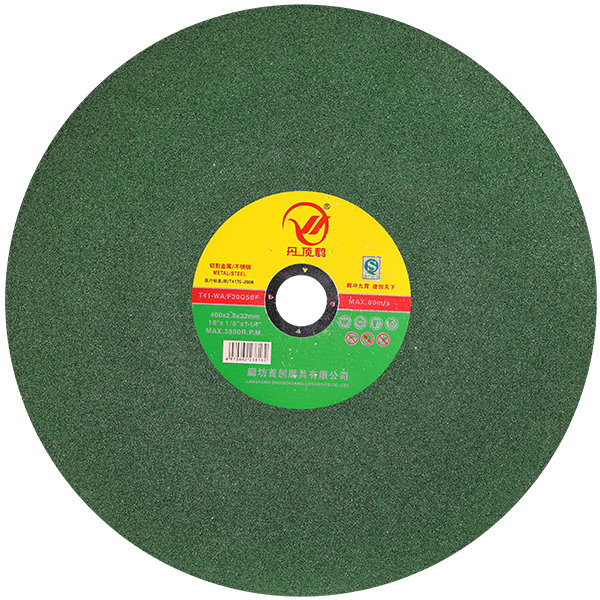

| Cutting Wheels For Metal Sharp type | |||||||
| 41WA（白刚玉） | |||||||
| Shape |
|
||||||
| Item No. | Specification(mm) | British system | Rotating speed R.P.M | Speed | Film / box (PCS) | Gross weight （kg） | size（cm） |
|---|---|---|---|---|---|---|---|
| DDH-41WA3552.5 | 355×2.5×25.4 | 14"×1/8"×1" | 4400 | 70M/S | 30 | 19 | 36×36×9 |
| DDH-41WA4002.8 | 400×2.8×32 | 16"×1/8"×1-1/4" | 3800 | 70M/S | 25 | 22 | 41×41×9 |
